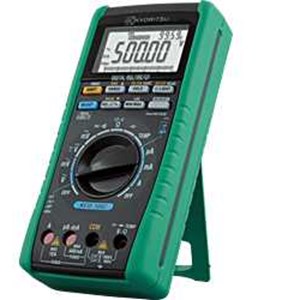

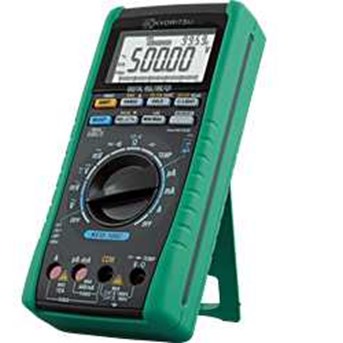

KYORITSU 1061/1062

High Accuracy, High Performance and Reliable Measurements : • 0.02% basic DC accuracy • Large display with 50,000 counts • Dual display for double indication for AC and DC, V and Hz, etc. • True-RMS Measurements AC and AC+DC • Wide AC Frequency bandwidth from 10Hz to 100kHz * • True-RMS or MEAN value detection mode can be selected * • Fast Peak Hold response time of 250µs • Low-pass filter for motor drive measurements * • Low Power © for resistance measurements on sensible electronic circuits by a low and safe test current * • User calibration function * Only for KEW 1062 Safety design for industrial use : • Complies with IEC 61010-1 CAT.III 1000V, CAT.IV 600V • Terminal shutter to prevent incorrect test leads' insertion in current terminals • Very wide operating temperature range from -20 to 55ºC Reliable support for data management : • Large data internal memory KEW 1062: 10,000 data (logging), 100 data (manual) KEW 1061: 1,000 data (logging), 100 data (manual) • Download data and Live Monitoring on a PC via the USB interface (Option for USB Communication set) Detection mode : RMS MEAN/RMS (switch) (KEW 1061 KEW 1062 ) DC V 50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V (Input impedance: Approx. 100M© [50/500/2400mV], 10M© [5/50/500/1000V] |±0.02%rdg±2dgt (Basic accuracy) (KEW 1061 KEW 1062 ) AC V [RMS] 50.000/500.00mV/5.0000/50.000/500.00/1000.0V (Input impedance: 11M©
